Chain Chip Conveyor

Yantai Amho Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of chain chip conveyor in China. With a professional production team, we are able to meet the needs of the majority of our customers. Welcome to buy premium chain chip conveyor at competitive price from our factory.

Product Overview

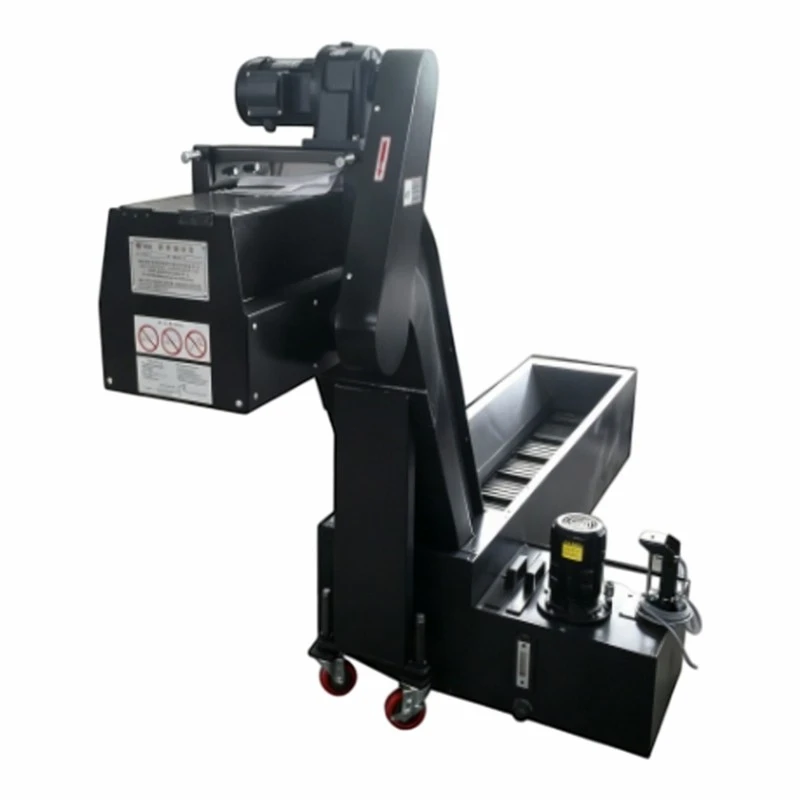

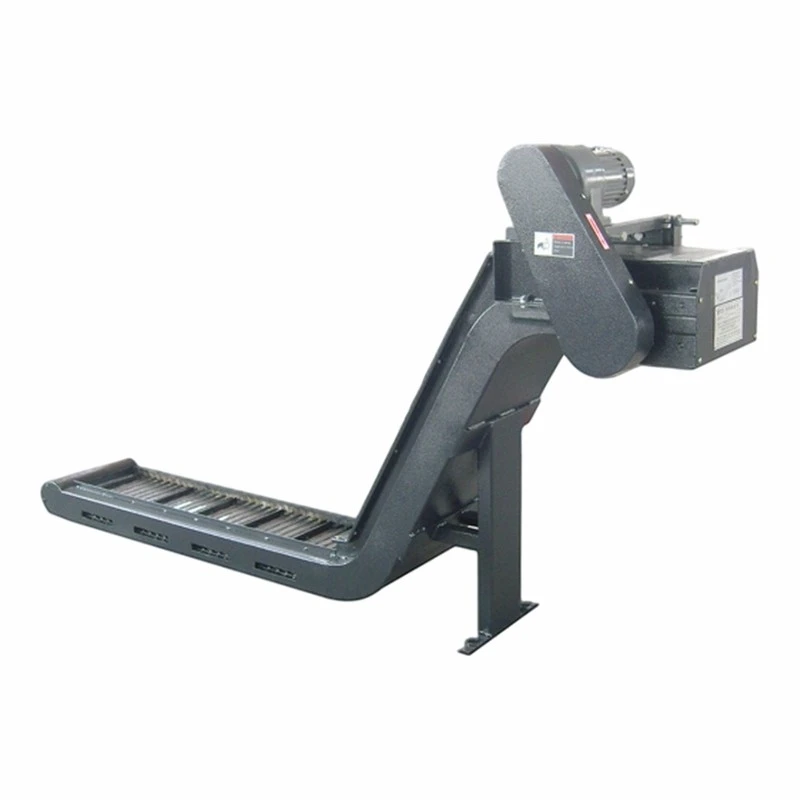

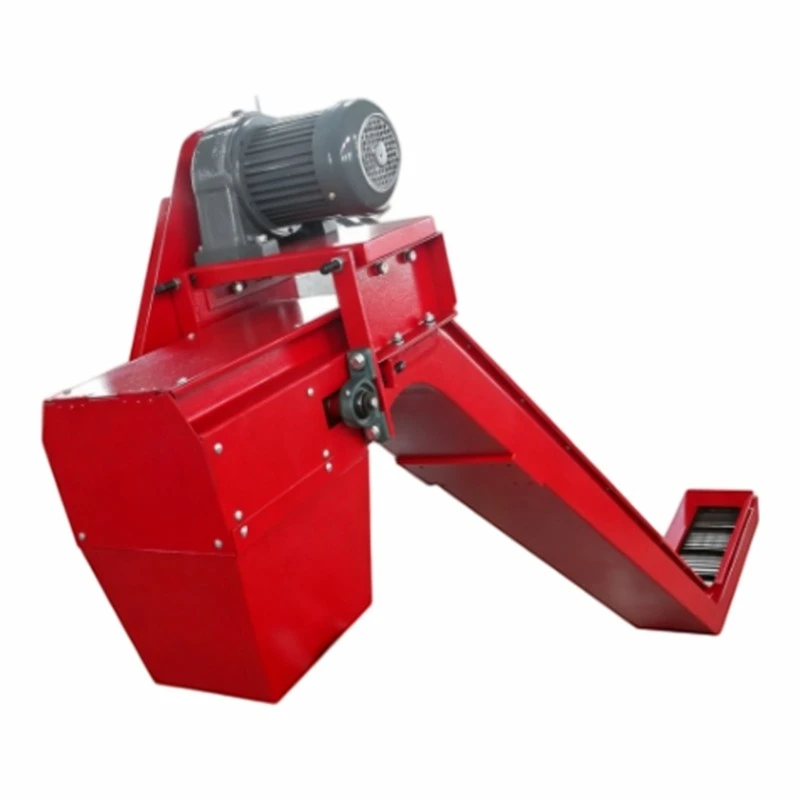

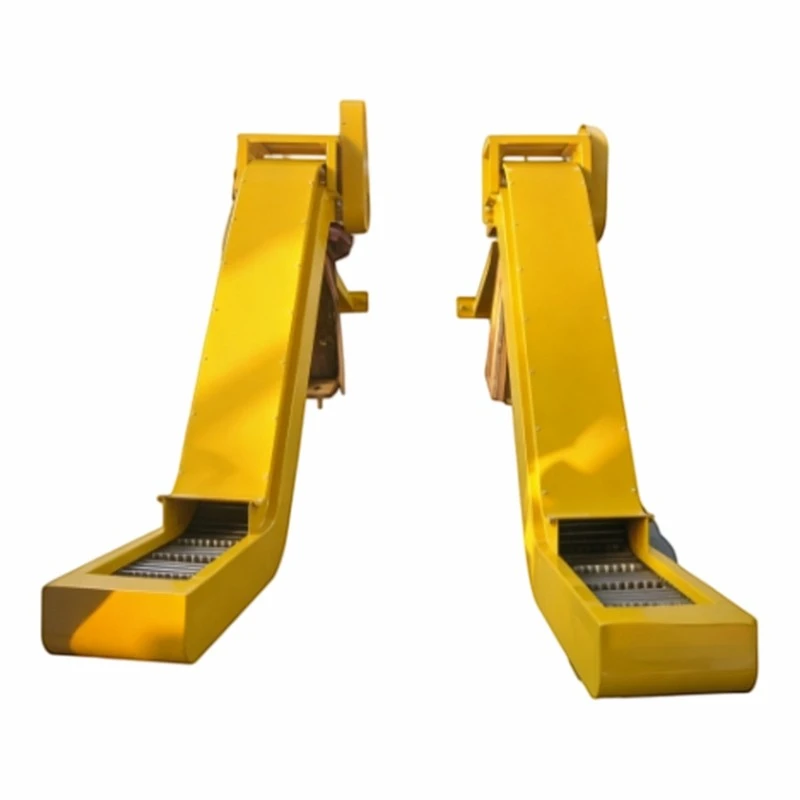

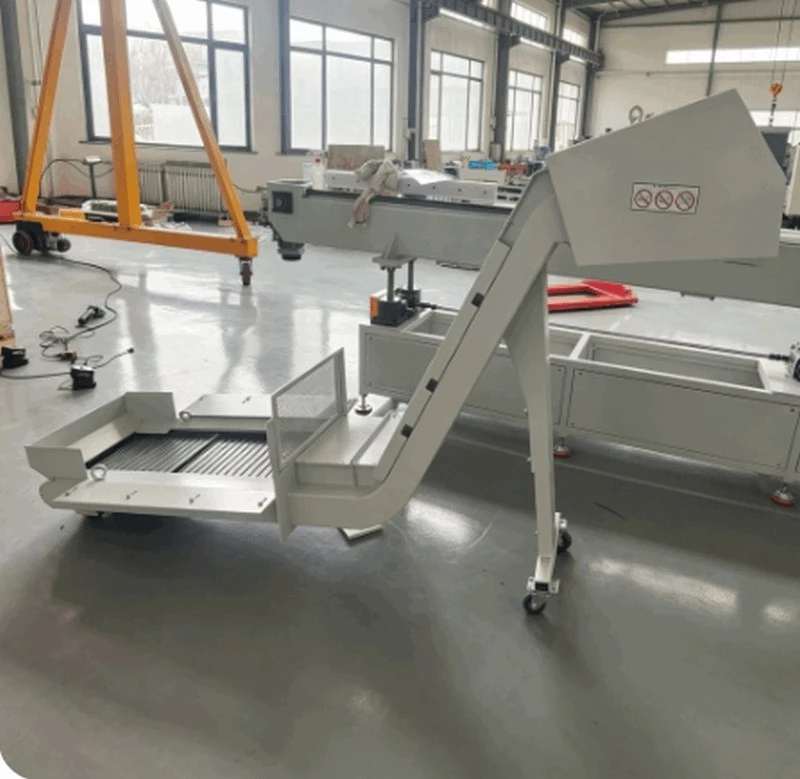

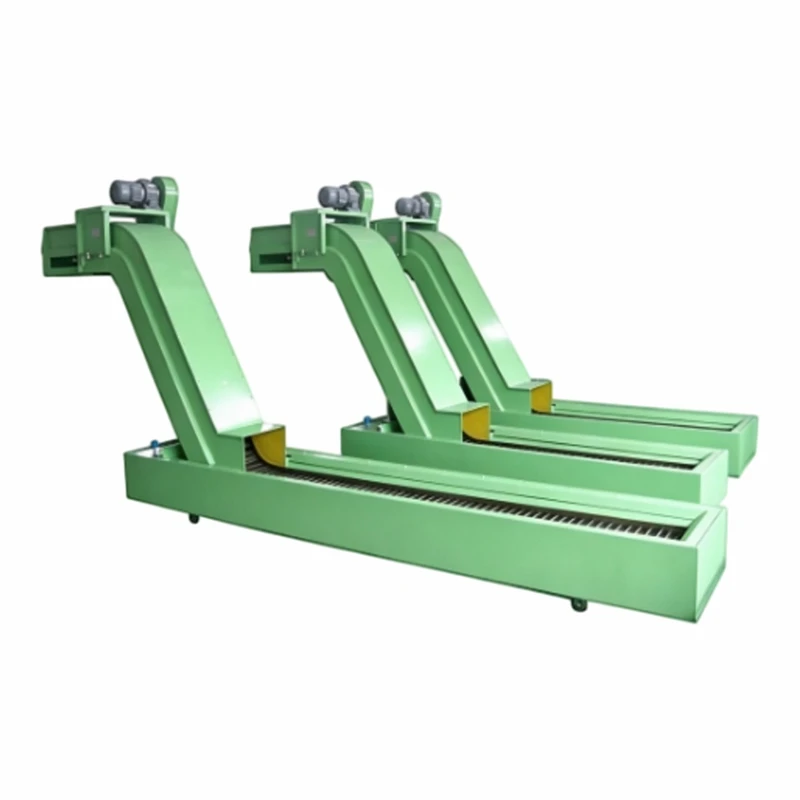

The Chain Chip Conveyor, also known as a hinge belt conveyor, is designed to collect and continuously discharge metal chips generated during machining. Its hinged steel plate structure can handle different types of machining waste, including long strips, short chips, curled chips and larger pieces.

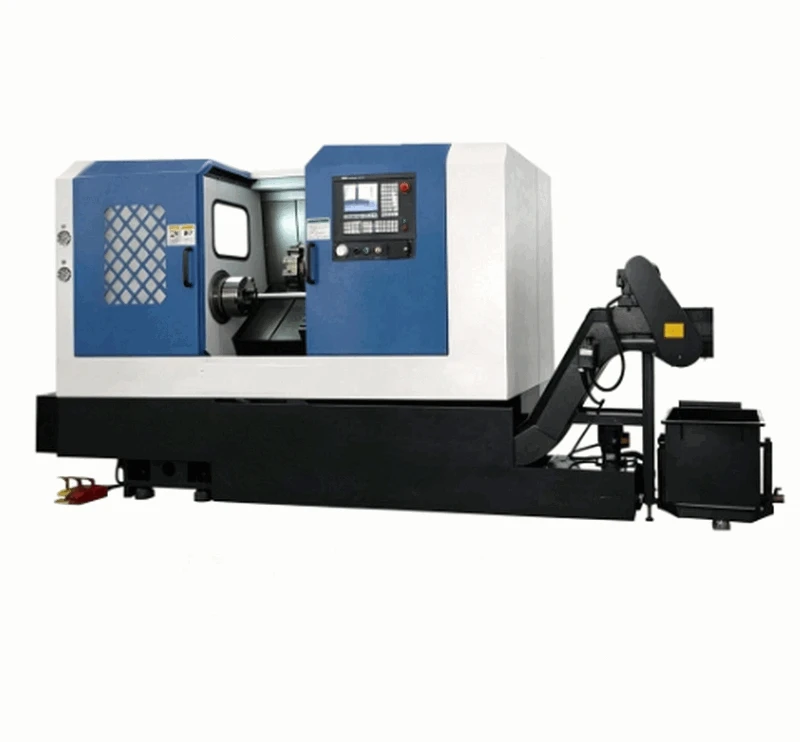

Unlike magnetic chip conveyors, this design is suitable for both magnetic and non-magnetic materials. It can be used for chips from copper, aluminum, stainless steel, carbon steel and other machining materials. The conveyor is commonly installed on CNC lathes, machining centers, automatic production lines and other machine tools where chips need to be removed continuously.

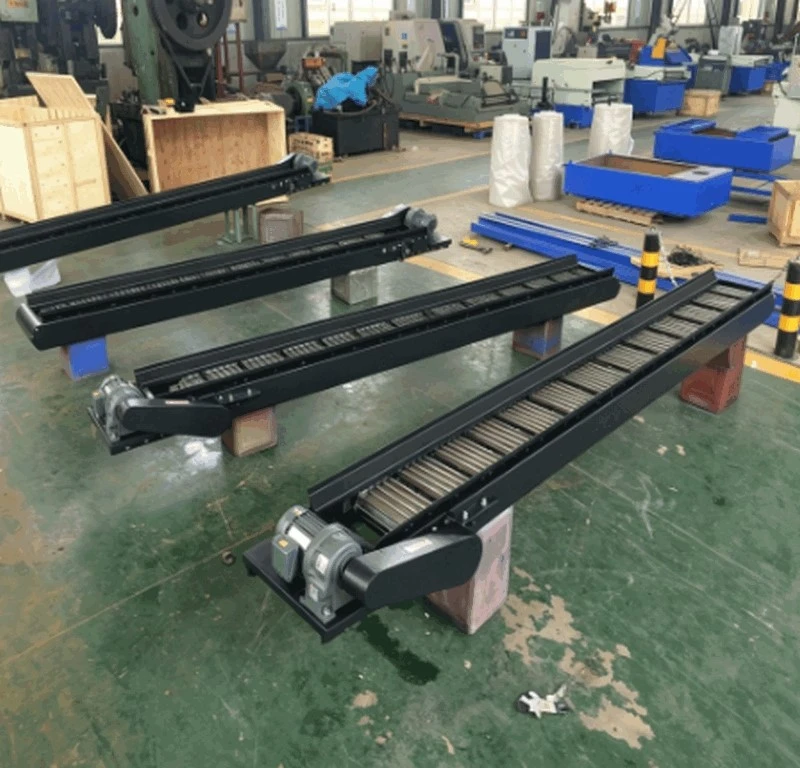

The conveyor uses a chain-driven hinged belt to move chips from the machining area to a designated collection point. A mechanical overload protection system on the drive shaft helps reduce the risk of motor damage if the chain becomes blocked during operation.

Amho provides conveyor solutions for customers in different machining and production environments.

Different chain plate pitches are available, including 31.75 mm, 38.1 mm, 50.8 mm, 63.5 mm and 101.6 mm. The suitable pitch can be selected according to the type and size of chips, machining conditions and the amount of waste produced.

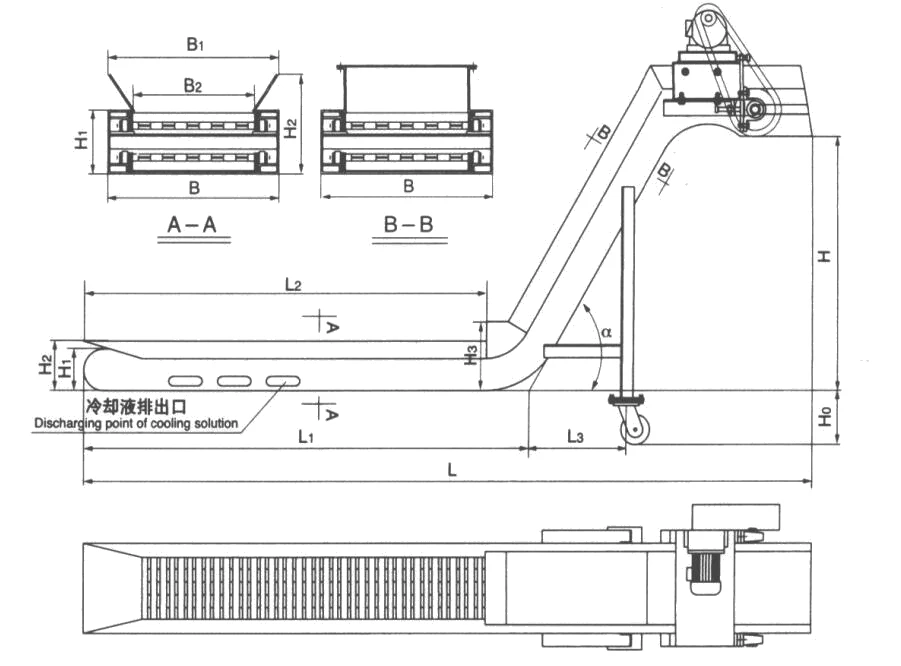

The conveyor can also be manufactured according to the available installation space. Length, width, lifting height and conveying angle can be adjusted to suit different CNC machine layouts.

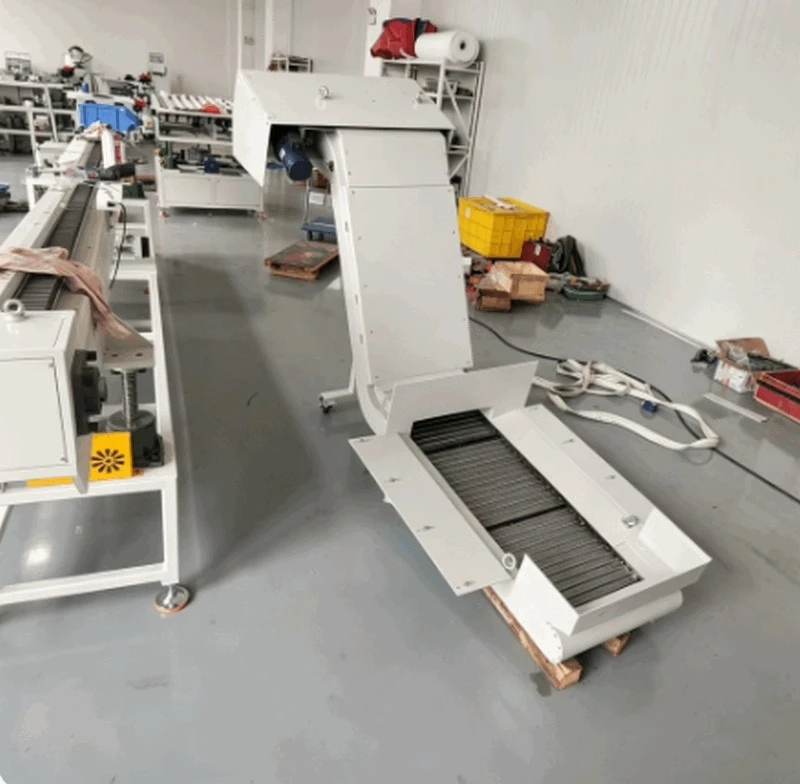

Carbon steel and SS304 stainless steel are available for the chain plates. A 60° lifting configuration is commonly used, while 30° and 45° options can also be supplied for installations with different space or discharge requirements.

Where It Is Used



The Chain Chip Conveyor is suitable for various machining and chip-handling applications, including:

• CNC lathes and machining centers
• Automatic and flexible production lines
• Gantry CNC milling machines
• Long-bed boring machines
• Punching and cold forging equipment
• Small-part conveying and chip collection systems



By continuously moving chips away from the machining area, the conveyor can reduce the need for manual cleaning and help maintain a more organized production environment. Its configuration can be adapted to different machine layouts, making it practical for both individual machine installations and larger automated production lines.

Amho focuses on machine tool accessories and provides equipment solutions for customers in overseas markets. In addition to chip conveyors, its product range covers coolant filtration equipment, magnetic separators, metal chip shredders and other related products. The company states that its products are supplied to markets including New Zealand, Canada, the United States, the United Kingdom, Australia and several Southeast Asian countries.

For customized Chain Chip Conveyor requirements, the conveyor dimensions, chain plate material, pitch, lifting height and discharge configuration can be discussed according to the customer's machine model and installation conditions. The manufacturer's design team can also provide drawings to assist with equipment selection and installation.
